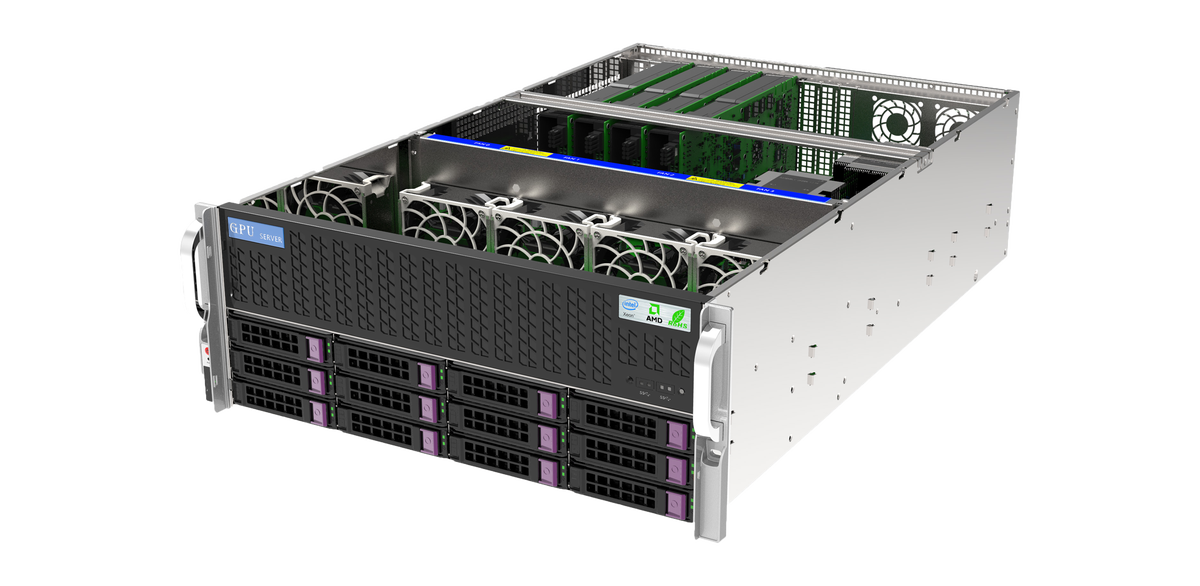

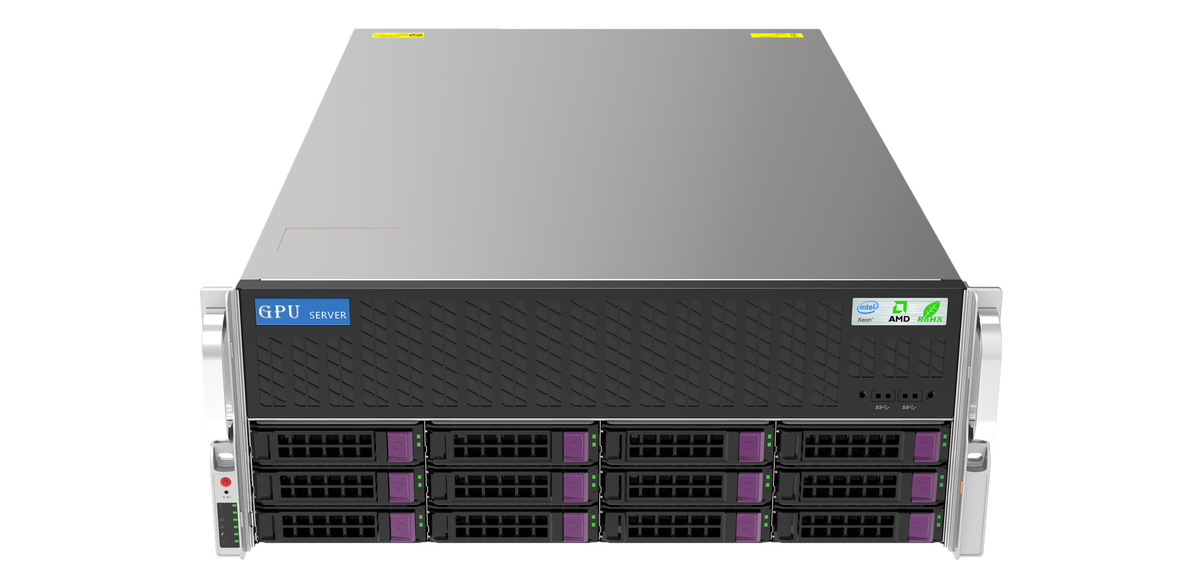

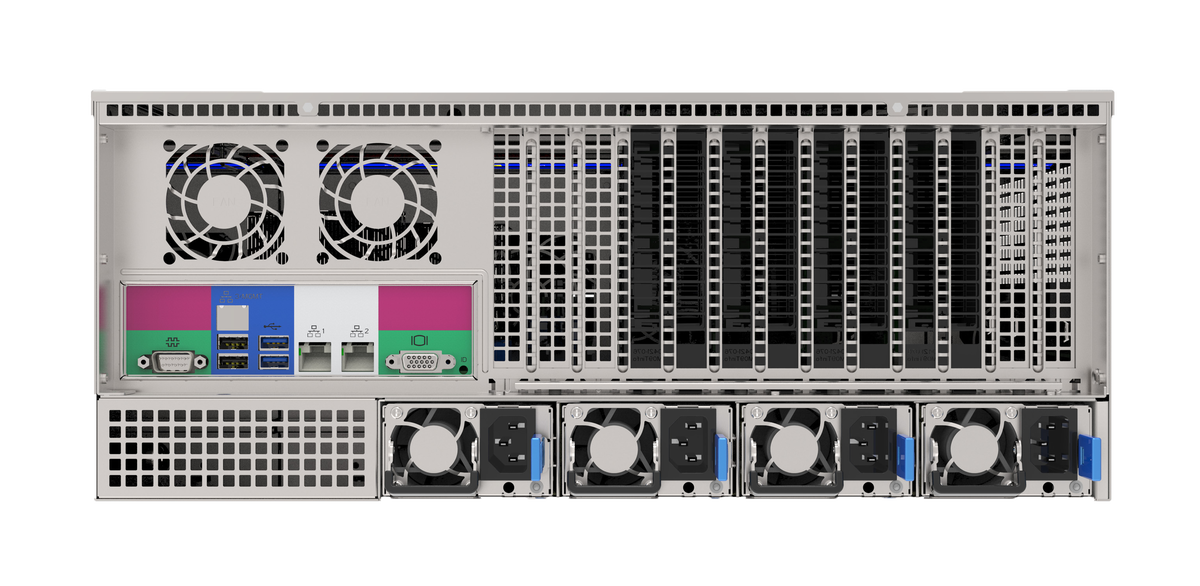

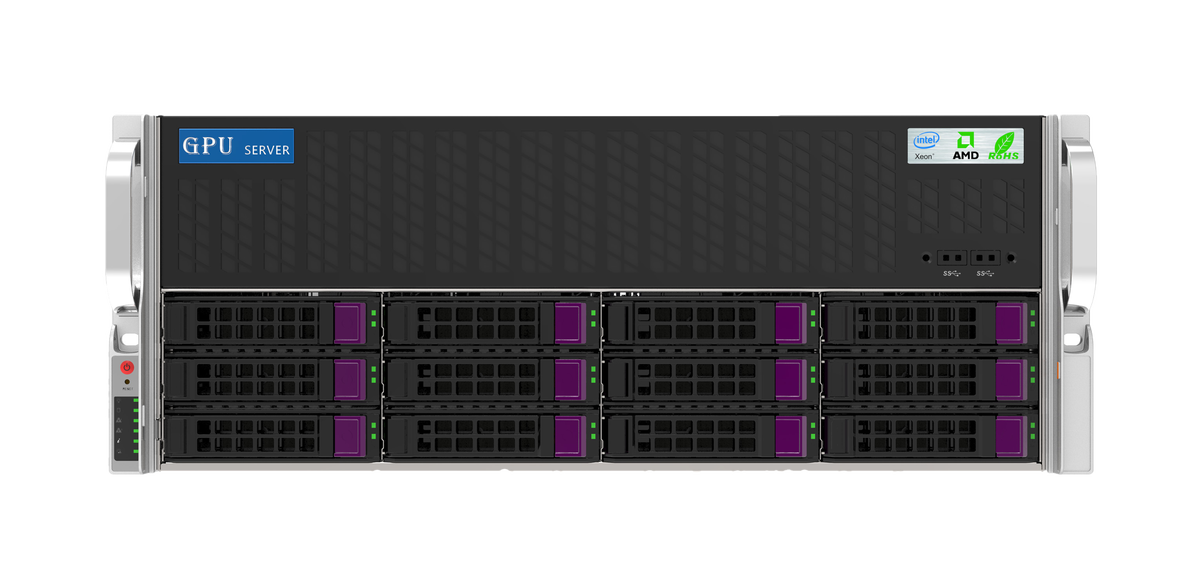

ChangFan CF-2424G8 – 4U 4-GPU Intel High-Performance Server
The ChangFan CF-2424G8 series supports up to 4 double-wide GPUs and is powered by dual Intel Xeon high-performance processors, offering an outstanding price-performance ratio, strong performance, excellent expandability and high reliability. It meets the needs of diverse application scenarios and provides the best hardware platform for AI, deep learning, modeling & simulation, film post-production and graphics rendering — an excellent choice for university laboratories and research institutions.
Key Features:
● Independent R&D, exceptional value: Designed in-house by ChangFan Technology with a deeply optimized system architecture, delivering a more competitive price at equivalent configurations.
● 4U rack-mount high-performance server: Standard 4U chassis measuring 438mm × 177mm × 660mm, built for standardized data centers and server rooms.
● Dual Intel Xeon Scalable processors (1st–5th Gen): Flexible compatibility across multiple CPU generations to meet different compute and budget requirements.
● Up to 4TB of memory: Up to 16× DDR4/DDR5 RDIMM slots, fully satisfying memory-intensive applications.
● Flexible drive-bay configuration: 8/12/24 SATA/SAS bays with optional NVMe bays, balancing capacity and I/O performance.
● Up to 4 double-wide GPUs: Ideal for compute-intensive workloads such as AI training, inference and graphics rendering.

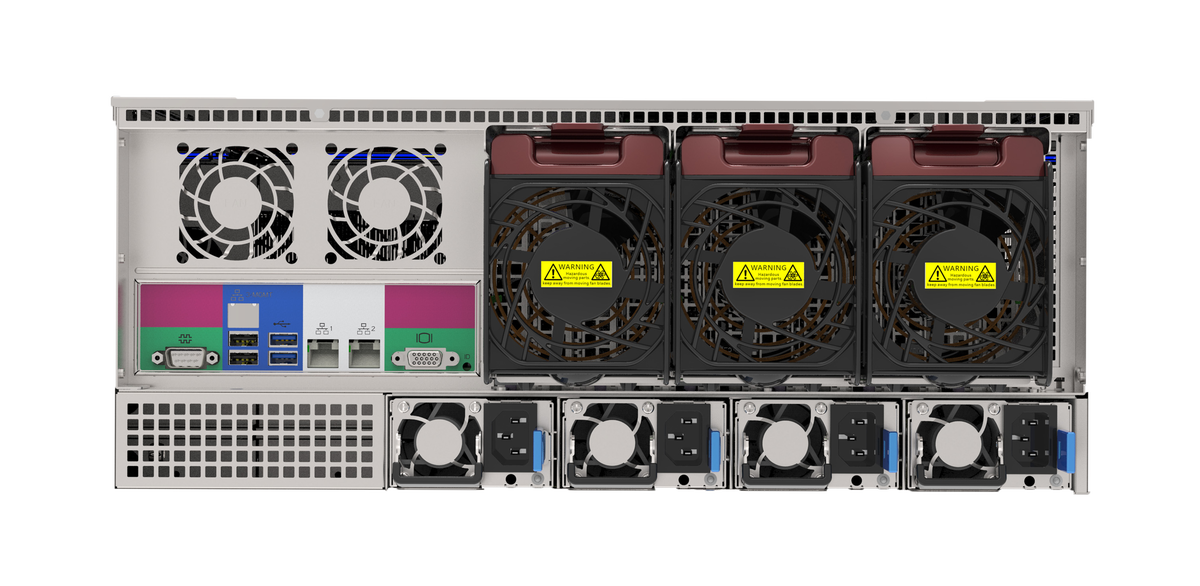

● Dedicated rear GPU fan module: Purpose-built GPU cooling keeps the system stable under heavy load and protects long training runs.
● 1+1 redundant power: 2000W/2700W 80 Plus Platinum high-efficiency redundant PSUs keep mission-critical workloads running 24/7.
● Intelligent remote management: Onboard BMC with IPMI 2.0, SOL, KVM over IP and virtual media support for remote monitoring and O&M.
Applications:
● AI & deep learning: model training and inference, neural network deployment
● High-performance computing (HPC): scientific computing, engineering simulation and complex numerical analysis
● Cloud computing & VDI virtualization: GPU virtualization, cloud gaming, remote graphics workstations
● Graphics rendering & post-production: 3D rendering, film VFX, virtual production
● Universities & research labs: academic research, algorithm validation, teaching and experiment platforms
ChangFan Technology OEM/ODM Customization Services:
ChangFan Technology has deep expertise in the server industry, with end-to-end R&D capabilities spanning motherboard design, chassis engineering and system integration. For the CF-2424G8 series, we offer the following customization options:
● Flexible CPU platform selection (1st–5th Gen Xeon Scalable processors on demand)
● GPU compatibility tuning (supports mainstream brands such as NVIDIA and AMD)
● Custom storage backplanes supporting mixed SATA/SAS/NVMe configurations
● Custom chassis appearance, color, logo and front-panel layout
● System thermal optimization (additional auxiliary fans or liquid-cooling interfaces)
● Pre-installed OS, CUDA, deep learning frameworks and drivers for true out-of-the-box deployment
Whether you need a standard product or a fully customized solution, ChangFan responds fast to help you bring your business online quickly.
Product Specifications
Item | CF-2424G8-A (Purley Dual 4GPU Series) | CF-2424G8-B (IceLake Dual 4GPU Series) | CF-2424G8-C (Sapphire Rapids Dual 4GPU Series) |
|---|---|---|---|
Processor | Supports up to two 1st/2nd-generation Intel Xeon Scalable processors. | Supports up to two 3rd-generation Intel Xeon Scalable processors. | Supports up to two 4th/5th-generation Intel Xeon Scalable processors. |
Chipset | Intel C621 | Intel C621A | Intel C741 |
Memory | Supports up to 16 DDR4 RECC 2933 memory slots, with a maximum memory capacity of 4 TB. | Supports up to 16 DDR4 RECC 3200 memory slots, with a maximum memory capacity of 4 TB. | Supports up to 16 DDR5 RECC 5600 memory slots, with a maximum memory capacity of 4 TB. |
Drive Bays | 1. Supports 8/12/24 hot-swappable 3.5”/2.5” SATA/SAS hard drive bays (12 Gb/s); 2. (Optional) NVMe drive bay | Same as left | Same as left |
PCIe Expansion | 6×PCIe 3.0 x16, 1×PCIe 3.0 x4; 1×M.2 PCIe 3.0 x4 | 4×PCIe 4.0 x16, 2×PCIe 4.0 x16, 1×PCIe 4.0 x8; 2×M.2 NVMe or 2×M.2 SATA3 | 6×PCIe 5.0 x16, 1×PCIe 5.0 x8 |
I/O Interfaces | 2×USB 3.0, 2×USB 2.0, 1×VGA, 1×COM | 5×USB 3.0, 4×USB 2.0, 1×VGA, 2×COM | 1×VGA, 4×USB 3.0, 1×COM |
Network Interface | Onboard: two 10GbE electrical ports via RJ45, one IPMI management port via RJ45. | Onboard: two RJ45 Gigabit Ethernet ports, one RJ45 IPMI management port. | (Please consult with a sales representative to confirm.) |
Remote Management | Onboard BMC management module, supporting IPMI 2.0, SOL, KVM over IP, virtual media, and other management features. | Same as left | Same as left |
System Fans | Standard 4 x 92mm hot-plug fans/PWM +2 x 80mm rear hot-plug fans/PWM(CPU position),(optional) 2 x 80mm rear hot-plug fans/PWM(GPU position) | Same as left | Same as left |
Power Supply | 2000W / 2700W(1+1)80Plus Platinum High Efficiency Redundant Power Supply | Same as left | Same as left |
Dimensions | 438mm × 177mm × 660mm | Same as left | Same as left |
Operating Environment | Operating temperature: 10°C–35°C; operating humidity: 8%–90% (non-condensing); storage temperature: –40°C–70°C; storage humidity: 5%–95% (non-condensing). | Same as left | Same as left |
OS Support | Microsoft Windows Server, Red Hat Enterprise Linux, CentOS, Ubuntu, SUSE Linux | Same as left | Same as left |
